Calculating Deflection in a 5-Ton Double Girder Crane

Mr. Ba, a renowned construction foreman, was known for his meticulous approach. When needing to transport materials across a stream, he insisted on building a sturdy bridge. People laughed, suggesting a simple bamboo bridge would suffice. Mr. Ba simply smiled, saying, “Better safe than sorry! Careful calculations now prevent future headaches.”

He was proven right. When using a 5-ton double girder crane to move heavy materials, his bridge remained steadfast, showing no signs of deflection. Everyone marveled at his foresight. So, what was the secret behind his “careful calculations”? Let’s explore how to calculate deflection in a 5-ton double girder crane – a crucial factor for the safety of your project.

The Importance of Calculating Deflection in a 5-Ton Double Girder Crane

Safety First

Crane deflection, regardless of capacity (5 tons or otherwise), directly impacts the load-bearing capacity and stability of the entire system. Accurate deflection calculations help:

• Prevent workplace accidents: Avoid dangerous incidents like collapse or crane system failure during operation.
• Protect equipment and goods: Minimize the risk of damage to both the crane and the transported materials.
• Enhance work efficiency: Ensure continuous and efficient lifting operations without interruption.

Deflection Calculation – Is It Complicated?

Many fear that deflection calculations are complex, requiring advanced expertise. This isn’t necessarily true! Experienced engineers like Robert Langdon, a leading structural expert in the US, have stated: “Calculating crane deflection is not rocket science. With a firm grasp of the formula and technical parameters, anyone can do it.”

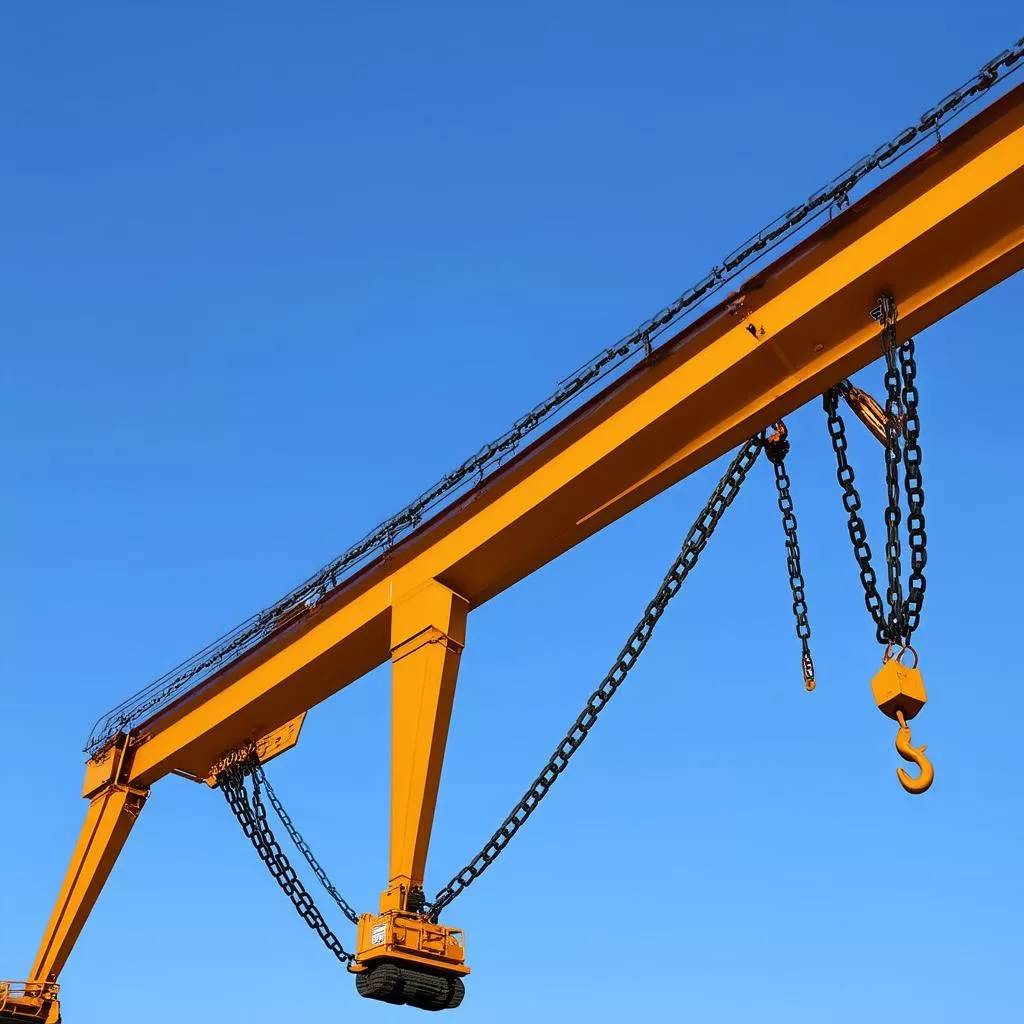

Double girder crane structure

The “Golden” Formula for Calculating Deflection in a 5-Ton Double Girder Crane

The formula for calculating deflection (f) in a 5-ton double girder crane is:

f = (P x L^3) / (48 x E x I)

Where:

• f: Deflection (mm)
• P: Load applied to the main girder (N) (including the crane’s own weight and the lifted load). Note: 1 ton = 9806.65 N
• L: Span between the two main girder supports (mm)
• E: Modulus of elasticity of the main girder material (N/mm²) (this parameter depends on the material of the main girder, such as steel, concrete, etc.)
• I: Moment of inertia of the main girder’s cross-section (mm⁴) (this parameter represents the girder’s resistance to bending)

Example:

A 5-ton double girder crane has a span of 6000mm. The main girder is made of steel with a modulus of elasticity E = 210,000 N/mm² and a moment of inertia I = 10^8 mm⁴. The maximum lifting load is 5 tons.

Calculation:

• P = (5 tons x 9806.65 N/ton) + (crane’s own weight)
• f = (P x 6000^3) / (48 x 210,000 x 10^8)

You need to determine the crane’s own weight for accurate deflection calculation. This information is usually provided by the manufacturer.

Frequently Asked Questions

1. What is the allowable deflection for a 5-ton double girder crane?

Allowable deflection depends on design standards and crane type. Typically, it ranges from L/400 to L/600, where L is the span between supports.

2. Which factors most significantly affect crane deflection?

The span between supports (L) and the applied load (P) are the two most influential factors. Greater span and higher load result in greater deflection.

3. How can crane deflection be reduced?

You can reduce deflection by:

• Decreasing the span between supports.
• Using a material with a higher modulus of elasticity (E) for the main girder.
• Increasing the moment of inertia (I) of the main girder by changing its shape or dimensions.
• Reducing the lifted load.

Spirituality and Feng Shui in Construction

For centuries, the Vietnamese have believed in “An cư lạc nghiệp” (Peaceful settlement, successful career), highlighting the importance of sturdy homes and workshops. In Feng Shui, a crane is considered the “backbone” of a construction project, connecting the energy between heaven and earth. Calculating deflection ensures this “backbone” remains strong, bringing prosperity to the business.

Related Articles

• Choosing the Right Crane for Your Workshop

Need More Advice?

XE TẢI HÀ NỘI is ready to assist you 24/7! Contact our Hotline: 0968 239 999 for detailed consultation on lifting solutions and choosing the most suitable truck.

Engineer reviewing blueprints

We hope this article has provided a clearer understanding of how to calculate deflection in a 5-ton double girder crane. Visit xetaihanoi.edu.vn for more informative content.
