The Ignition Coil: Small Part, Big Power

“We often say that a car needs fuel to run, just like a person needs food for energy. But few know that for that “food” to be “cooked” and power the vehicle, a “spark” is needed from the ignition coil. So, what is an ignition coil? How important is it? Let’s delve into the details with Hanoi Trucks.”

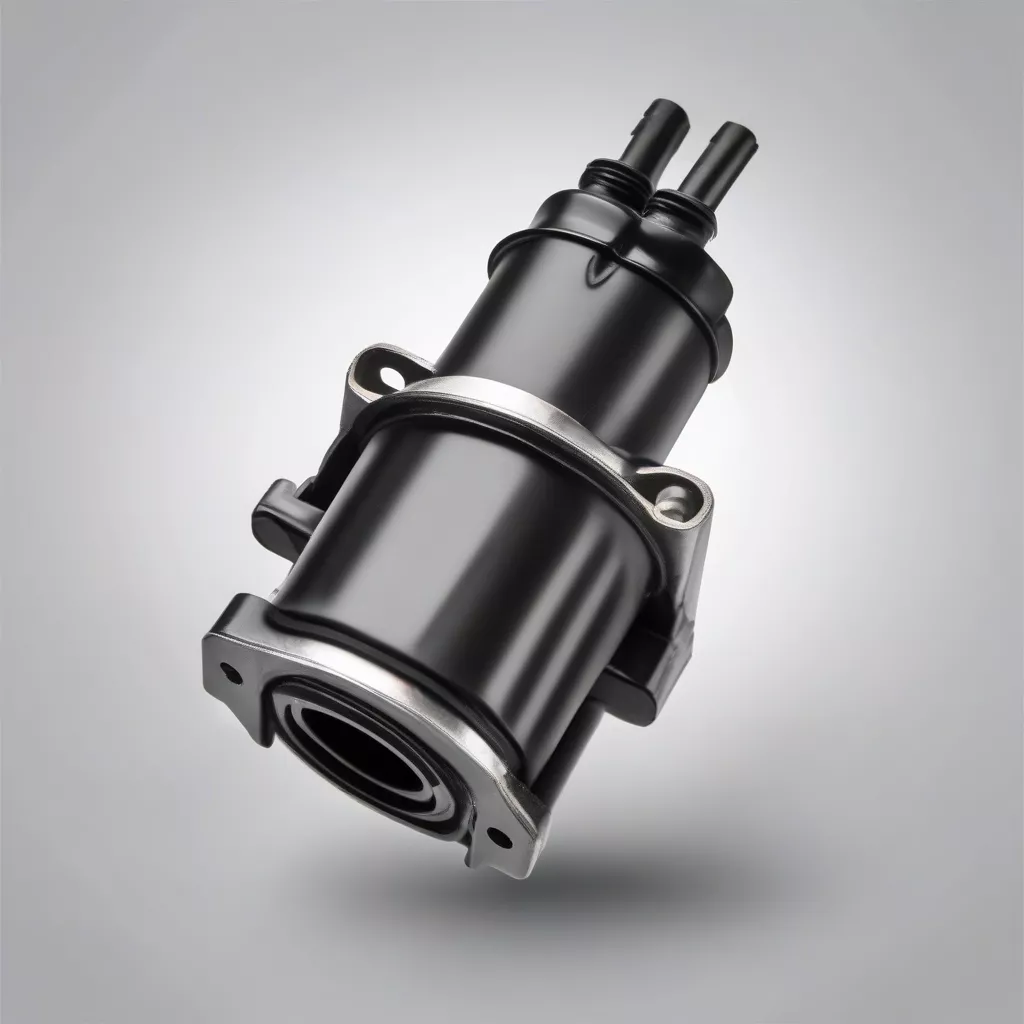

What is an Ignition Coil?

The ignition coil (also known as the spark coil) is a crucial component in a vehicle’s ignition system. It transforms the 12V current from the battery into a high-voltage current (around 20,000 – 40,000V), supplying the spark plugs to generate the spark needed to ignite the air-fuel mixture in the combustion chamber, powering the engine.

Ignition Coil

Structure and Working Principle of an Ignition Coil

Structure

An ignition coil has a relatively simple structure, consisting of:

• Iron Core: Typically made of electrical steel with high magnetic permeability.
• Primary Winding: Composed of a few dozen turns of thick copper wire wound around the iron core.
• Secondary Winding: Composed of thousands of turns of thin copper wire wound around the primary winding.
• Coil Housing: Made of plastic or metal to protect the internal components.

Working Principle

The ignition coil operates based on the principle of electromagnetic induction. Specifically:

1. When current from the battery flows through the primary winding, it creates a magnetic field in the iron core.
2. When the current flow is suddenly interrupted (by a signal from the ECU), the magnetic field in the iron core collapses, inducing a voltage in the secondary winding.
3. Due to the significantly higher number of turns in the secondary winding compared to the primary winding, the voltage generated in the secondary winding is greatly amplified (around 20,000 – 40,000V).
4. This high-voltage current is transmitted to the spark plugs, creating a spark that ignites the air-fuel mixture in the combustion chamber.

Common Types of Ignition Coils

Various types of ignition coils are available in the market, categorized based on factors like:

• Structure: Single coil, double coil, pencil coil, etc.
• Application: Coils for gasoline engines, coils for cars, coils for trucks, etc.
• Brand: Bosch, Denso, NGK, Delphi, etc.

Advantages and Disadvantages of Ignition Coils

Advantages

• Compact Size: Easy to install and replace.
• High Performance: Generates a stable high-voltage current, ensuring powerful engine performance.
• Long Lifespan: Can operate reliably for extended periods.

Disadvantages

• Susceptible to High Temperatures: Operating at high temperatures can reduce the coil’s lifespan.
• Higher Cost Compared to Some Spark Plugs: However, considering their performance and longevity, ignition coils remain the optimal choice for modern vehicles.

Ignition Coil Price List

Note: This price list is for reference only. Actual prices may vary depending on time, distributor, and promotions.

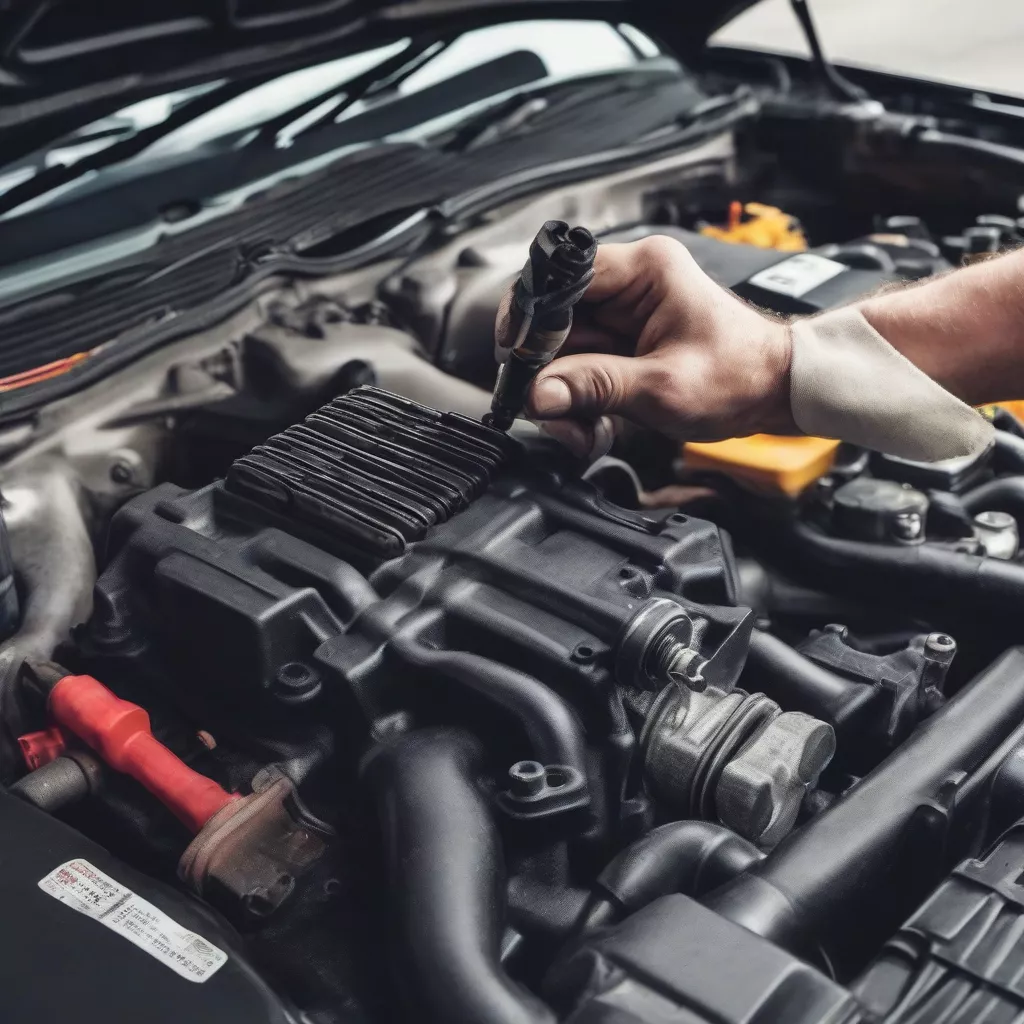

Replacing an Ignition Coil

Signs of a Failing Ignition Coil

• Difficulty starting or inability to start the engine.
• Engine misfires or rough running.
• Sluggish acceleration and reduced power.
• Increased fuel consumption.
• Illuminated check engine light.

Frequently Asked Questions about Ignition Coils

What is the lifespan of an ignition coil?

The lifespan of an ignition coil depends on various factors such as quality, operating conditions, and maintenance. Typically, a coil can last for about 80,000 – 100,000 km.

When should I replace my ignition coil?

It’s recommended to replace the ignition coil when there are signs of failure or after every 80,000 – 100,000 km to ensure stable engine operation.

Where can I get my ignition coil replaced reliably?

You can have your ignition coil replaced at reputable garages, authorized dealerships, or at Hanoi Trucks.

Choosing the Right Ignition Coil

To choose the right ignition coil, consider the following:

• Vehicle Compatibility: Each vehicle model uses a specific type of coil.
• Genuine Parts: Opt for coils from reputable brands like Bosch, Denso, NGK, etc., to ensure quality.
• Thorough Inspection: Inspect the coil carefully before purchasing to avoid counterfeit or low-quality products.

Purchase Ignition Coils at Hanoi Trucks

Hanoi Trucks proudly provides genuine, high-quality auto and truck parts at competitive prices. We are committed to providing customers with complete satisfaction through the best products and services.

In addition, Hanoi Trucks also offers other products such as:

• Spark Plugs: Bosch, Denso, NGK, etc.
• Spark Plug Wires: Denso, NGK, etc.
• Automotive Sensors: Bosch, Denso, etc.

Visit Hanoi Trucks at [address] or contact our hotline [phone number] for consultation and support.

Conclusion

The ignition coil, though a small component, plays a vital role in a vehicle’s ignition system. We hope this article has provided you with valuable information about ignition coils. If you have any questions, please leave a comment below, and Hanoi Trucks will gladly assist you.
